Robot Components

Components

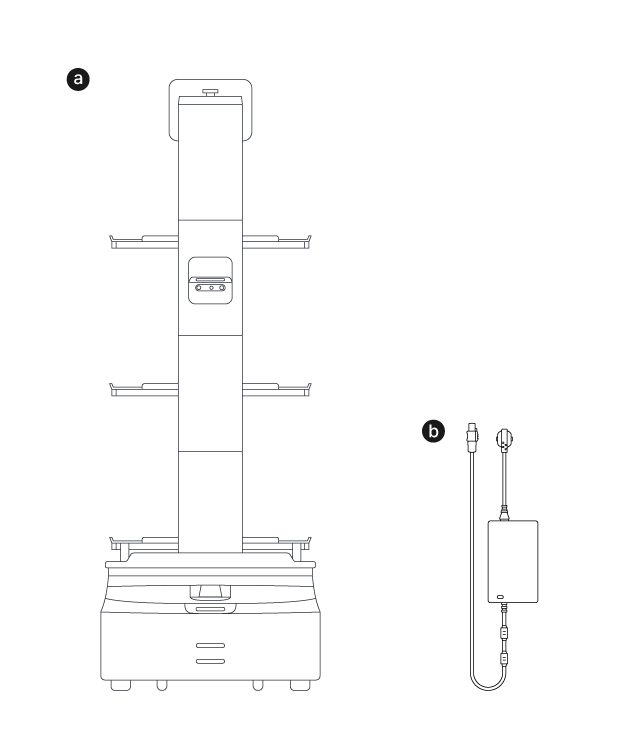

The robot is delivered with the following components:

ⓐ Robot main body
ⓑ Charger

Part Names

Below are the part names and locations.

Back

Front

Side

❿ Contact charging terminal
⓫ Auxiliary wheels
⓬ Wired charging terminal and power button
⓭ Wheels

❶ Touch screen
❷ USB port
❸ Tray
❹ Lower E-stop button

❺ Upper E-stop button
❻ Down-facing camera, front camera
❼ Base LED
❽ LiDAR sensor
❾ Up-facing camera

❶ Touch screen
❷ USB port
❸ Tray
❹ Lower E-stop button
❺ Upper E-stop button
❻ Down-facing camera, front camera
❼ Base LED
❽ LiDAR sensor
❾ Up-facing camera
❿ Wireless charging terminal
⓫ Auxiliary wheels
⓬ Wired charging terminal and power button
⓭ Wheels
