Managing Robots

Maintenance

| Exterior

Lightly wipe the exterior surfaces of the robot with a dry cloth or cloth. Keep the robot's cameras and sensors clean as dirt and debris can affect operation.

[Caution]

Do not use alcohol, acidic solutions, or strong chemical cleaners. The robot's surface may be damaged.

| Sensors

Fingerprints or foreign substances on the sensor should be removed using a microfiber cloth and glass cleaner. Foreign matters on the surface may cause malfunction of the product. Wipe it again with a dry microfiber cloth at the end to make sure you don’t leave any smudges behind, then shine your phone’s flash sideways to see if any spots remain.

Down-facing camera, front camera

Up-facing camera

LiDAR sensor

| Wireless Charging Terminal

Use a dry towel to clean the wireless charging terminal on a regular basis.The presence of foreign matters might lead to defective grounding.

| Wheels

[Caution]

  •  Make sure to turn off the robot before cleaning the wheels.

  • When removing the wheel cover, please be sure to wear gloves.

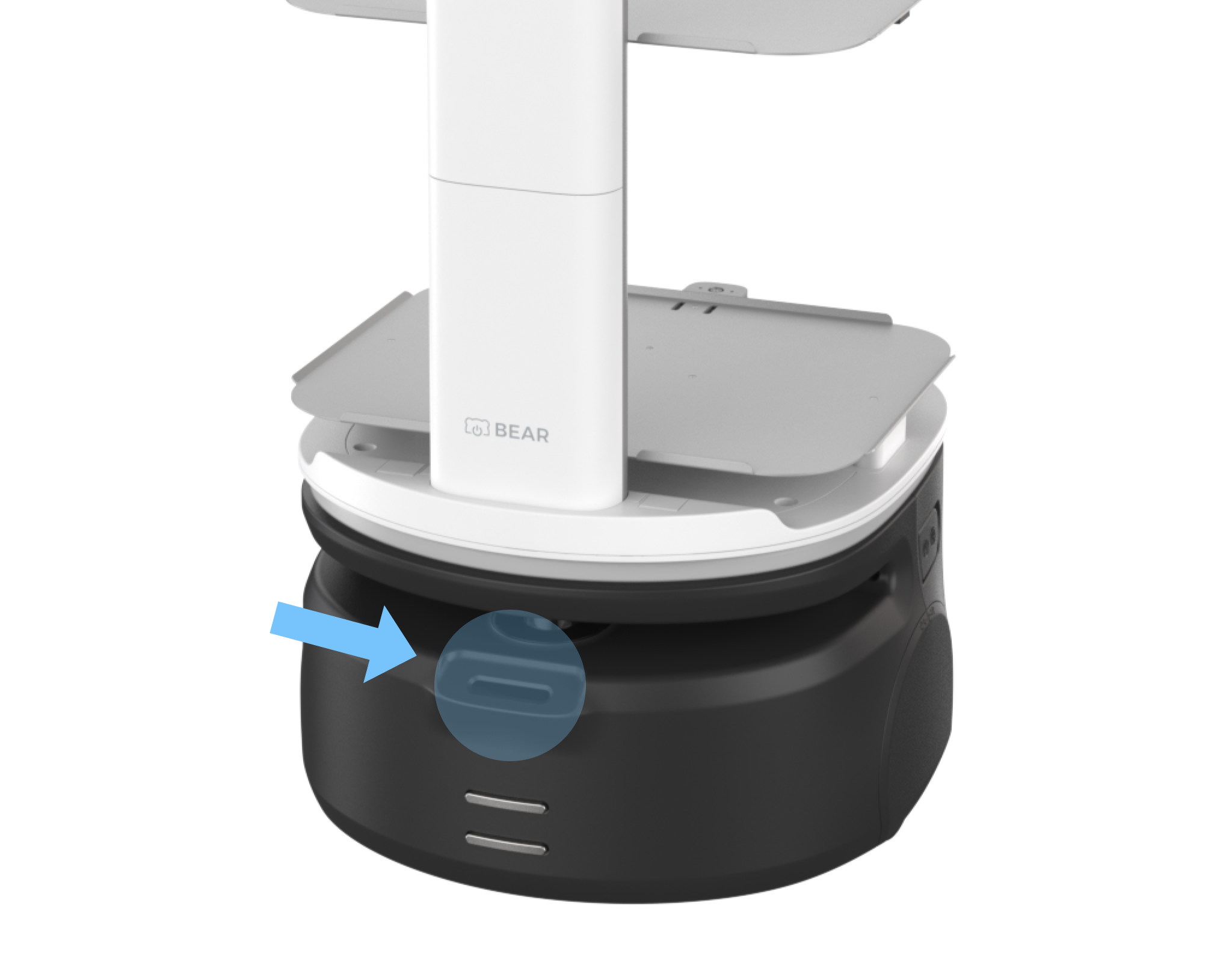

Remove the wheel covers and use a long brush to remove any debris or dust. When cleaning the wheels, gently wipe them with a damp towel. Refer to the image below for how to remove the wheel cover.

1. The center line of the wheel leads to the robot's main body. Turn the wheel cover to the left from the center line.

2. If the wheel cover is separated from the robot's main body, open the
cover as shown in the figure below.

3. After cleaning, put the wheel cover back on and turn it to the right, as shown in Image 1 above. The center line should run parallel to the edges of the robot's main body.

Transportation/Storage

The below instructions describe how to properly transport and store the robot.

| Transportation Method

  • To move the robot indoors, you can stand in front of or behind the robot and push it to the desired position.

  • A robot is paused when the screen is touched while on the move. Pause and then move the robot to the desired place.

[Caution]

  • While the robot is moving, do not drag it or block it in a hurry to stop it.

  • Be careful when moving the robot is negotiating a slide.

  • Do not lift and move the robot wheels so that they are off the ground.

  • For external/long transportation, use specialized transport vehicles and equipment with the robot powered off.

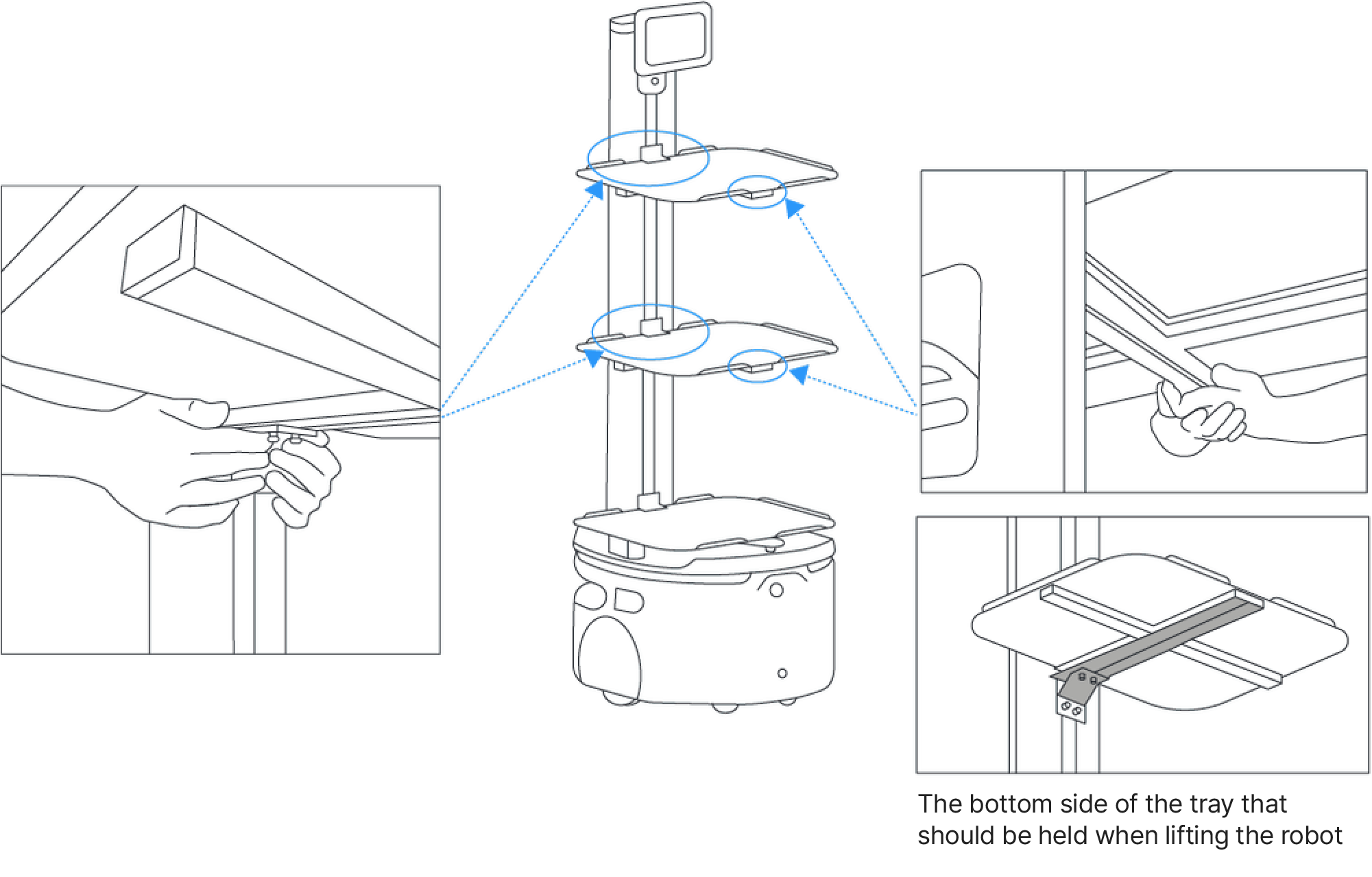

| Handgrips When Lifting the Robot

  • When you need to lift and move the robot, grip the bottom of the tray, as shown in the image.

| Storage Instructions

When storing the robot, charge the battery and store it by referring to the following.

  • The optimal storage temperature range for the robot is 50-95 ˚F (10-35 ˚C), and the optimal humidity range is 10-80%.

  • When storing the robot wrapped in packing material, include some moisture absorbents.

  • When storing the robot for extended periods, make sure to take necessary safety measures to prevent the risk of tipping over.
